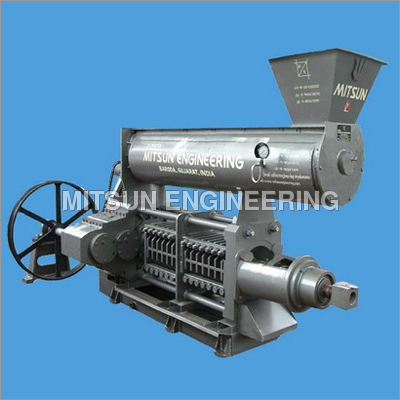

Oil Mill Equipment

Oil Mill Equipment
Oil Mill Equipment
Product Code : OME-08
Brand Name : MITSUN ENGINEERING
Product Description

Backed by team of diligent professionals, we are specialized in exporting Oil Mill Equipment. In this machine crushing of seeds is done in a single stage which involves pre-pressing and full pressing of oilseeds. This two chamber design of the mill ensures optimized oil extraction and hence, enhanced output capacity. Its rigid frame structure allows the machine to work flawlessly even during heavy load crushing operations. As per the clients requirements, our supplied Oil Mill Equipment is also available in custom design.

Products Attribute:

  • Longer service life
  • Highly efficient
  • Easy to handle
  • Abrasion resistant

Other information:

Special Features:

  • Two chamber design with pre pressing & full pressing in single stage crushing for superior oil extraction & lucrative operation.
  • Strong mainframe capable of sustaining heavy operating load for crushing jobs.
  • The expeller is capable of crushing all types of oilseeds and it has special design system for crushing of Sunflower seed & Cottonseed.

Advantages:

Gear Box:

  • Heavy duty double reduction gear box assembly with superlative workmanship and incorporated with heavy duty taper roller bearing with the capability to relent radial axial loads for crushing.

Cooker:

  • Steam Jacketed horizontal cooker fitted on the Main Expeller Body.

Main Shaft:

A distinctive hollow drive sleeve arrangement to permit the main worm shaft to terminate conveniently without affecting the gear box assembly. Also, it has the facility for water cooling plan for optimum quality oil and cake. Alloy steel main shaft, cage bars and worms are manufactured from special steel material with suitable hardening to function optimally under operating pressure and long last.

Electric Motor:

Expeller drive including Slip Ring Electric Motor equipped with special starter - slow start up with reversible switch panel board. It is resistant to wear and tear and restarts easily in case of sudden power failure.

CHAMBER SIZE

8” X 22 ½” , 6” X 26 “ Double chamber type.

POWER CONSUMPTION

3 –phase 50HP slip ring motor and 1000 RPM

KETTLE

Horizontal type, with steam heating arrangement (As Required) For efficient cooking of seed. Pipe fittings contains safety valve, steam valve, Pressure gauge and siphon tube.

HIGH CAPACITY

480 kgs to 525kgs per hour (10 to 12 Tons) in 24 hours. Capacity differs with material density and quality of oil in the seed.

OVERALL MACHINE DIMENSION (APPROX):

LENGTH

14 Ft

WIDTH

4 Ft 6 Inch

HEIGHT

6FT 10 Inch
